Customized 304 Stainless Steel Filter Housing For Industrial Filtration

Product Categories

Upick Filtration

Contact Now

Brand Name : UPK

Model Number : U-SS006

Certification : CE

Place of Origin : CHINA

MOQ : 1 PC

Price : Negotiation

Payment Terms : L/C, T/T, PAYPAL

Supply Ability : 200 PCS PER MONTH

Delivery Time : 20-30DAYS

Packaging Details : 1 PC Per Carton with infilling

Item Name : Suctorial filter housing

Size : Customized size

Material : Iron, 304, 316L

Others : OEM is welcome

brand : UPK

color : grey

Contact Now

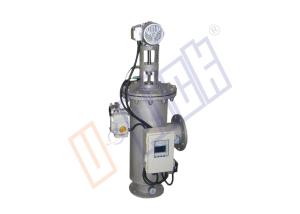

Suctorial tyle 304 stainless steel filter housing for industry use

Specification

Flow Rate	25-1200m³/h
Min. Working Pressure	0.1Mpa
Max. Working Pressure	1.0Mpa / 1.6Mpa / 2.5Mpa
Pressure Loss ( In Washing )	0.01Mpa
Max. Working Water Temp.	80℃
Filtration Precision	50-3500micron
Automatic Washing Time	60 seconds
Auto Washing Control	Differencitial, time and automatic
Voltage	220V
Operation Rated Voltage	220V 380V 50HZ

Model Selection

Model	Pipe φ	Flow Rate	Filtration Area	Drain Outlet φ	Water Volume (1 time washing)	Power of Motor	Weight
UPK-50XF	50	20	1500	50	75	0.55	85
UPK-80XF	80	50	1500	50	75	0.55	87
UPK-100XF	100	80	3000	50	150	0.55	210
UPK-125XF	125	100	3000	50	150	0.55	212
UPK-150XF	150	150	7000	50	150	0.55	212
UPK-200XF	200	300	7000	50	150	0.55	220
UPK-250XF	250	450	11000	80	400	0.55	395
UPK-300XF	300	600	11000	80	400	0.55	405
UPK-350XF	350	900	13500	80	400	0.55	625
Max Water Temp.			60℃ (Reach 100℃ for some special demand
Backwash Time			50-90 seconds
Backwash Water Volume			280-310kg
Electric Power			380V, 50HZ, Controller 220V
Motor Power			0.37Kw Absorbing Mouth Type
Filter Housing Shell			Resin coating on surface
Filtering Net			Stainless steel multi-layer net, screen and PVC frame
Drain Valve			Resin coating on iron surface
